Overview

The SIO03-99 is the autonomous vehicle component (tracelet) of our localization solution LYVE. By means of sensor data fusion, SIO03-99 enables high-precision self-positioning in buses, trains or other powered assets with only one tracelet per vehicle. SIO03-99 transmits the position information via Ethernet to in-vehicle systems for further processing of the position.

Warning

The SIO03-99 is a temporary prototyping unit. Although it has an integrated UWB receiver for indoor positioning, this functionality is not available due to the internal construction.

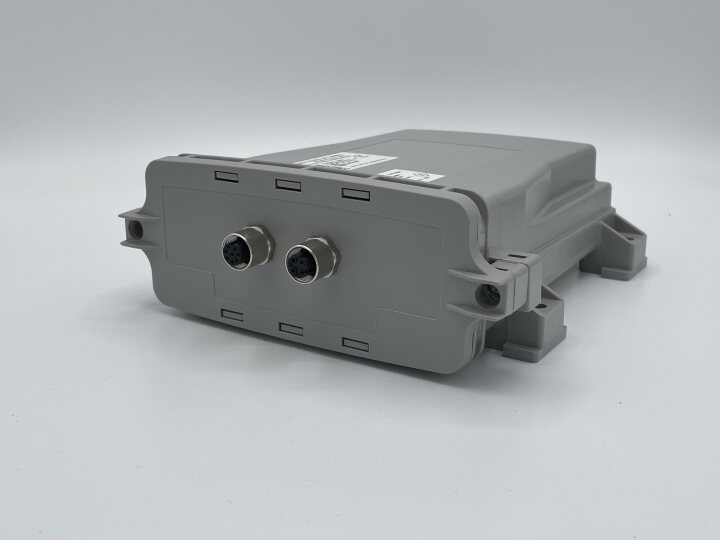

SIO03-99 tracelet

Product Features:

  • GNSS/RTK multiband GNSS receiver < 1m accuracy
  • Inertial Measurement Unit (IMU)
  • Speed Pulse Signal according to IEC 16844-2
  • 100MBit/s Ethernet, PoE PD class 1
  • Alt. power input 9…36V DC (12/24V nom.); Ignition
  • USB service interface
  • Monitoring and remote maintenance (e.g. OTA update of firmware)
  • Designed for use in Rail (EN 50155)
  • Internal GNSS antenna

See the quick-start guide for commissioning steps.
