Welcome to the EKF SQ1-TRACK documentation.

The EKF SQ1-TRACK has been designed by Ci4Rail for EKF Elektronik GmbH.

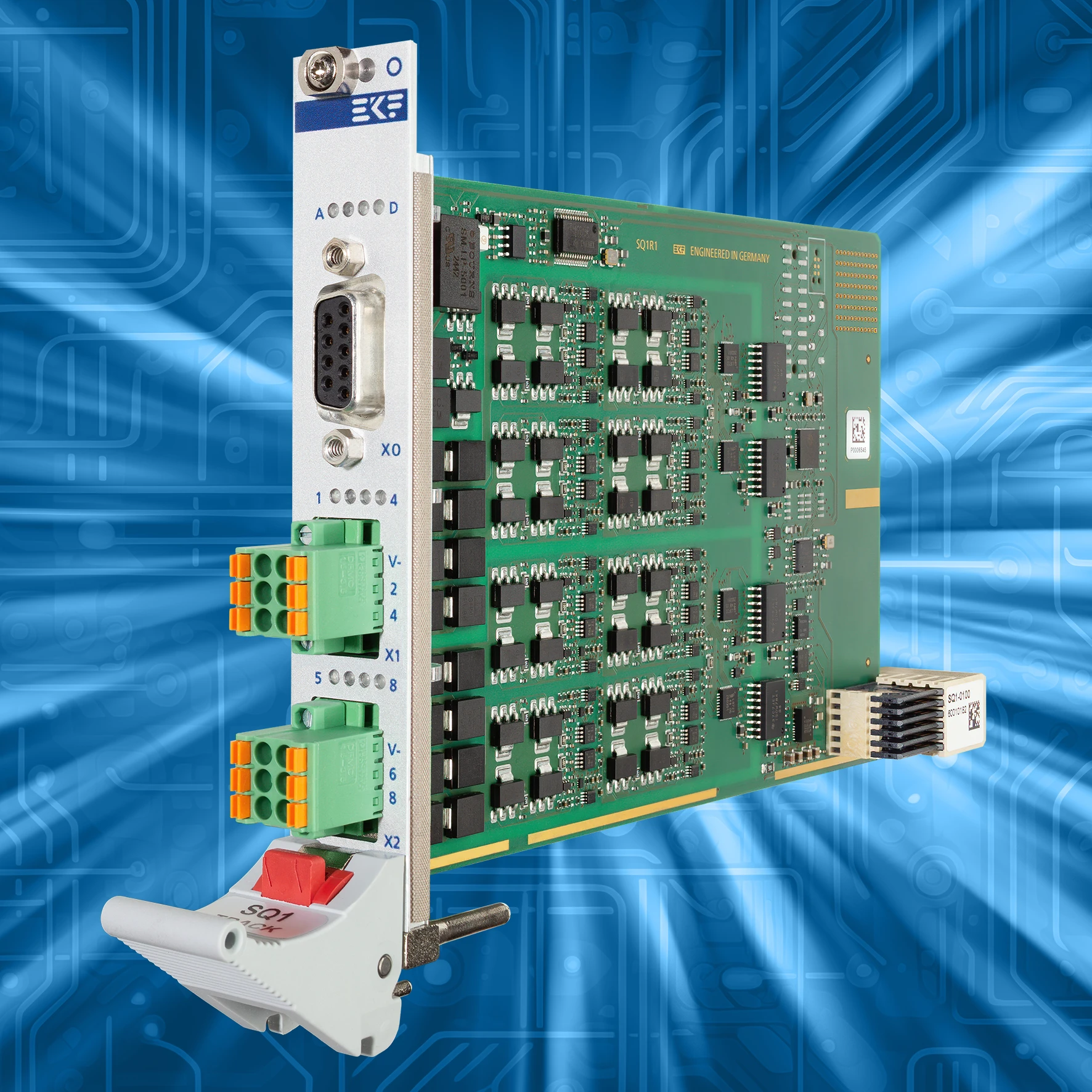

EKF SQ1-TRACK product view

Based on an ESP32 series microcontroller, the SQ1-TRACK provides a versatile binary frontend according to the EN 50155.

Features

  • PICMG® CompactPCI® Serial (CPCI-S.0) peripheral card
  • 2 groups of 4 railway compliant binary I/Os (24 V..110 V, 0.5 A per channel)
  • 2 additional 24 V binary outputs

EKF SQ1-TRACK is an Io4Edge device, and therefore supports the features common to all Io4Edge devices.
