IOU04 - CAN & Serial Interfaces

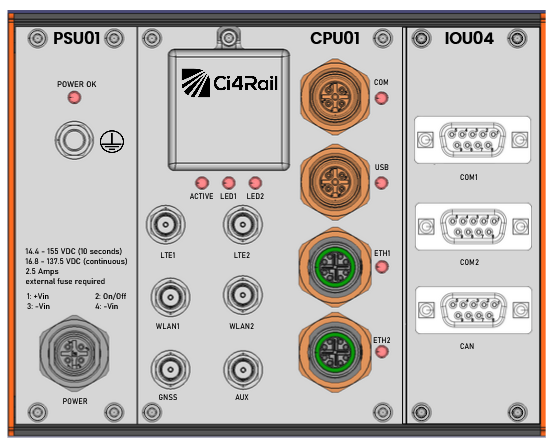

IOU04 product view

IOU04 is a serial and CAN interface extension unit for edge applications in rail and bus deployments.

Features

  • 1 slot (7 HP) extension unit for the ModuCop edge computer
  • 2 serial interfaces with RS232 or RS485 full-duplex or RS485 half-duplex
  • Virtual TTY support using RFC2217
  • Appears as a standard TTY device on Linux hosts
  • 1 ISO 11898 CAN bus interface, up to 1 MBit/s
  • Usable for direct I/O or as a data logger with multiple data streams
  • SocketCAN support
  • Galvanic isolation of all interfaces
  • EN 50155 compliant

IOU04 is an io4edge device and therefore supports the features common to all io4edge devices.
