IOU06 - Multiple Communication Interfaces

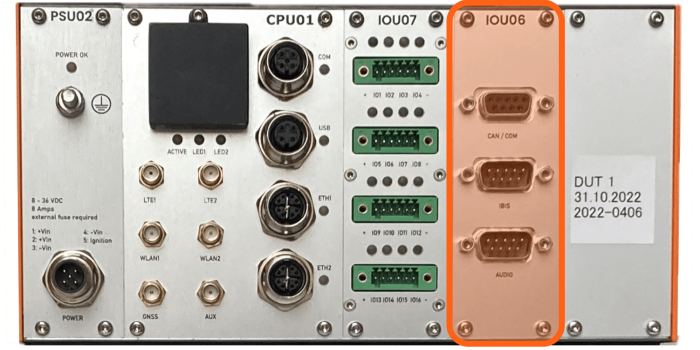

IOU06 product view

Info

Picture shows IOU06 Revision 0

IOU06 is a communication extension unit for trams & busses. It upgrades the ModuCop edge computer to a full-featured OBU (onboard unit) by adding interfaces commonly required in public transport applications.

Features

  • 1 slot (7 HP) extension unit for the ModuCop edge computer
  • 1 IBIS Master, shared DSub with IBIS Slave
  • Appears as a standard tty device on Linux hosts
  • 1 IBIS Slave, shared DSub with IBIS Master
  • Appears as a standard tty device on Linux hosts
  • 1 ISO 11898 CAN bus interface, up to 1 MBit/s
  • Usable for direct I/O or as a data logger with multiple data streams
  • SocketCAN support
  • 1× RS422/485, shared D-Sub with CAN
  • Appears as a standard TTY device on Linux hosts
  • 1× audio interface (2× line out mono, 1× line in mono)
  • Linux ALSA compatible
  • 2 binary outputs 24V
  • Galvanic isolation of all interfaces
  • EN 50155 compliant, UN-ECE R10 (E-Mark) (integrated in ModuCop)

IOU06 is an io4edge device and therefore supports the features common to all io4edge devices.
