IOU09 - 8 channel Analog Input Extension

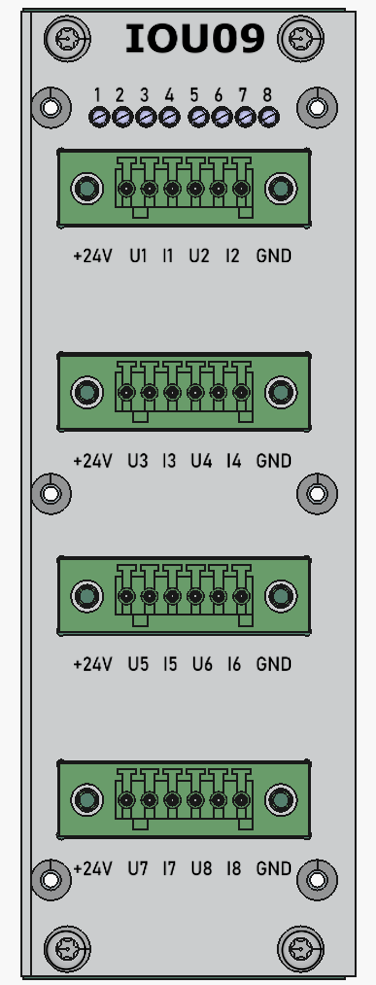

IOU09 product view

IOU09 is a general purpose 8 channel analog input module with integrated sensor supply.

Features

  • 1 slot (7 HP) extension unit for ModuCop Edge Computer
  • 4 groups of 2 analog inputs via 6-pin spring terminal
  • Voltage (+/-10 V) or current (+/-20 mA) measurement
  • 24 Bit resolution
  • Sample rates from 61 Hz to 3.9 kHz per channel
  • Programmable gain per channel
  • Per group 24 V / 50 mA supply for sensors
  • Usable for direct I/O or as data logger with multiple data streams.
  • Galvanic isolation between groups and to host system
  • EN50155 compliant

IOU09 is an Io4Edge device, and therefore supports the features common to all Io4Edge devices.
