Technical Data

This chapter describes the technical details of the SIO07.

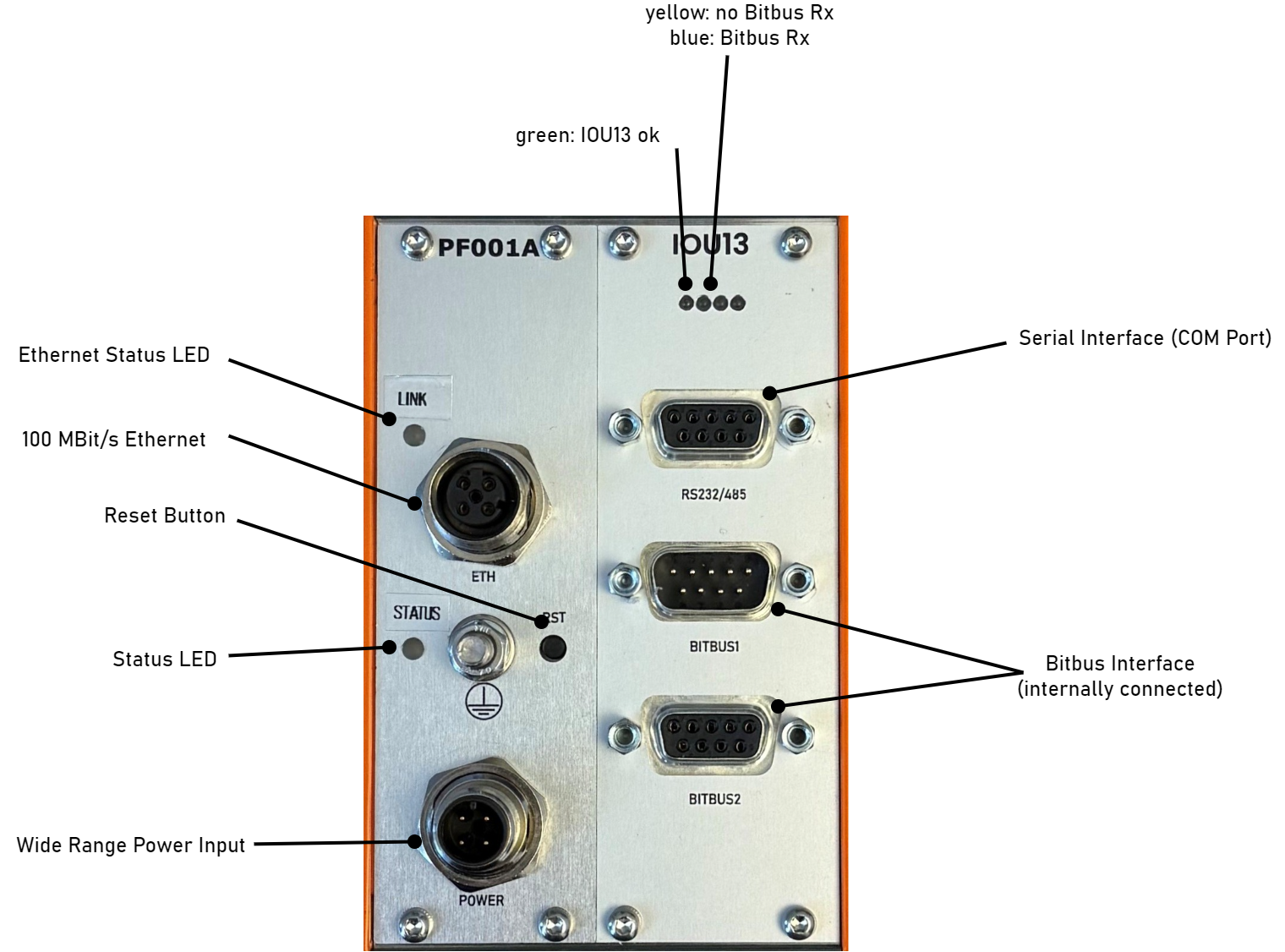

SIO07 interfaces

Electrical Specification

Power Supply

Power input voltage range: 14.4 V ... 154 V DC according to EN 50155 Class S2

Power consumption (typ): < 5 W

Isolation Groups

Isolation groups

  • Power Input - 1500 VAC
  • Ethernet - 500 VAC
  • Serial Interface (RS232/RS485) - 500 VAC
  • Bitbus - 500 VAC

Bitbus Characteristics

The SIO07 offers a Bitbus interface via a two D-Sub connectors. Both are internally connected, as defined by the Bitbus standard.

The sender of the Bitbus is disabled, so the SIO07 only monitors the bus traffic without affecting the bus.

Serial Interface Characteristics

The SIO07 offers a serial interface with RS232 or RS485-full-duplex or RS485-half-duplex via a 9-pin D-Sub connector.

  • Baud rates up to 460800 baud
  • Hardware flow control lines available in RS232 mode

Mechanical Specification

Dimension tolerances are in accordance with ISO 2768-m.

Dimensions (for details, please refer to the 2D drawing) without mounting accesories:

  • Width: 71.45 mm
  • Height: 111.8 mm
  • Depth: 76.34 mm

Weight:

  • 0.48 kg (without mounting accesories)

Product Identification

The SIO07 provides a label on the left side wall with the following content:

Ci4Rail Standard Label:

  • CE Label
  • Ci4Rail Article Number
  • Ci4Rail Address
  • Serial Number
  • QR Code, containing Serial Number

Product Conformity

The product conforms - when installed properly in equipment location 1 or 2 according to EN 50155:2021 - to:

Category Standard
Electrical Safety EN 50153:2014 + A1:2017 + A2:2020
EN 50124-1:2017
EN ISO 13732-1:2008
Electromagnetic Compatibility Emission: EN 50121-3-2:2016 + A1:2019
EMV 06 (2.0) Class S1
Immunity: EN 50121-3-2:2016 + A1:2019
Environmental Operating temperature: -40..+70°C (EN 50155:2021; OT4, ST1)
Storage temperature: -40..+85 °C (EN 50155:2021)
Altitude: +3000 m max. (EN 50125-1:2014, class AX)
Humidity: 95 % RH max. (EN 50125-1:2014)
Shock & Vibration: EN 61373:2010; Cat. 1, Class B
Pollution degree: PD2 (EN 50124-1:2017)
Reliability MTBF: TBD
Useful life: 20 years (EN 50155:2021, class L4)
Fire & Smoke EN 45545-2:2020 + A1:2023; HL3
Ingress Protection IP30
