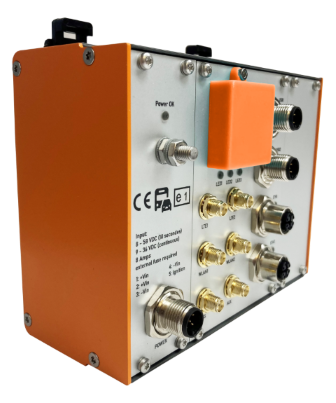

ModuCop
Our ModuCop is a modular flexible space saving edge computer
- Based on powerful ARM Cortex A53 quad core
- Modular and intelligent I/O units to cover any interface need
- Various connectivity to meet any train interface or operate as a standalone device
- Life-time managed Yocto linux microservices platform incl. container runtime for multiple applications
ModuCop is qualified for use in rail and public transport applications. Due to its flexibility ModuCop adapts to a wide range of vehicle interfaces and thus represents the basic platform for numerous onboard applications.
ModuCop consists of the basic units Power Supply (slot 1), CPU unit (slot 2&3) and various intelligent extension units to cover any application specific interface needs, as e.g. MVB. Build-to-order configuration allows application tailored edge devices with one extension (4 slot / 28 HP), 3 extensions (6 slot / 42 HP) or up to 9 extension (12 slot / 84 HP).
ModuCop features an ARM Quad Core offering the computing power to host additional custom applications up to machine learning algorithms in a containerized environment.
In addition, a variety of wireless connectivity is provided, enabling both a connection to the cloud and a connection to wireless sensor technology in a vehicle.
The edge computer comes as ONE platform, differencing only by application specific power supply and custom configurations. ModuCop is available with various software functionality based on Linux operating system and is integrated seamlessly in Ci4Rails cloud services.
Target Applications
- Condition-based monitoring
- Predictive maintenance
- On-Board Computer
- Fleet Management
- Advanced driver assistance system
- Ticketing System
- Security Gateway
