Specifications

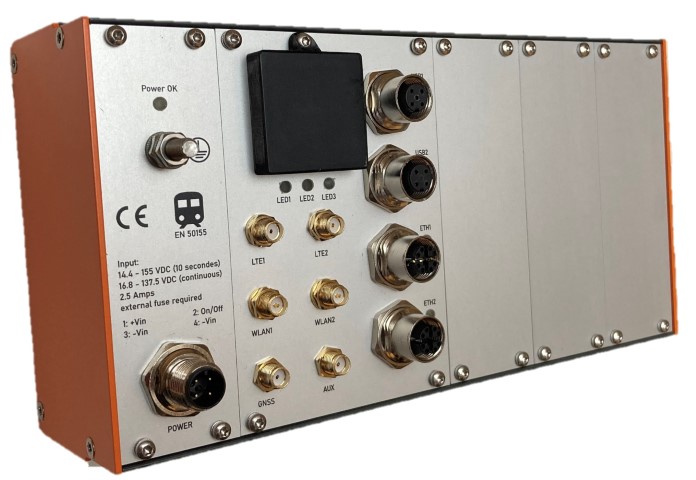

This page provides information about the technical specification of ModuCop Edge Computer.
Features
- ARM® Cortex A53 Quad-Core, ARM® Cortex M4F
- 2 GB DDR4; 16 GB eMMC
- 2x 1GB/s Ethernet, 1x USB 2.0, 1x RS232
- Integrated WLAN, LTE, GNSS
- Expandable by modular extension units
- Variable housing 3 slot to 12 slot
- Linux Microservices Platform
- EN 50155 and E1 qualified
Detailed Technical Specification
| Feature | Value | S100-MEC01- (Rail) | S100-MEC02- (Automotive) |
|---|---|---|---|
| System | |||
| CPU | ARM Cortex A53 Quad Core 1,6 Ghz | x | x |
| Main Memory | 2 GB DDR4 | x | x |
| Storage | 16 GB eMMC | x | x |
| Power Input | 24...110V DC nom. (EN 50155:2017 Class S2) | x | |
| 9...36V DC nom. (ISO 7637-2:2011) | x | ||
| Input / Output | 2x 1GB/s Ethernet via 8p M12 X-coded | x | x |
| 1x USB 2.0 via 4p M12 A-coded; | x | x | |
| 1x RS232 via 5p M12 A-coded | x | x | |
| Wireless | Wi-Fi IEEE 802.11 ac/a/b/g/n via 2x RP-SMA antenna; | x | x |
| GPS (incl. dead reckoning) via 1x SMA antenna; | x | x | |
| LTE (optional) via 2x SMA antenna | (x) | (x) | |
| LoRaWan (optional) via 1x SMA antenna | (x) | (x) | |
| Maintenance (Front Accessible) | 1x Slot for μSD | x | x |
| 1x Nano-SIM Slot | x | x | |
| 1x USB Service via Type C | x | x | |
| 1x UART Service via USB Type C | x | x | |
| Security | Integrated TPM 2.0 | x | x |
| Miscellaneous | Integrated 3-axis accelerometer | x | x |
| I/O Extensions | |||
| Extensibility | Modular configuration by I/O extension units | x | x |
| 1 extension (4 slot / 28 HP) | x | x | |
| 3 extensions (6 slot / 42 HP) | x | x | |
| up to 9 extensions (12 slot / 84 HP) | x | x | |
| Functional extension to MVB, BIN I/O, CAN, IBIS, Serial IF, RTEthernet …. (optional) | (x) | (x) | |
| Mechanics | |||
| Dimensions (w/o mounting acc) | Width: 142.3 mm (4 slot); 213.2 mm (6 slot); 426.8 mm (12 slot) | x | x |
| Depth: 61.2 mm | x | x | |
| Height: 111.5 mm | x | x | |
| Mounting | DIN Rail, wall mounting, 19‘‘ sub-rack mounting (see accessories) | x | x |
| Environmental | |||
| Operating / Storage Temperature | -40…+70°C / 85°C (10min) (EN 50155:2017 - OT4 + ST1) / -40…+85°C (EN 50155:2017) | x | x |
| Humidity | 95% (EN 50125-1:2014) | x | x |
| Altitude | 3000 m max. above sea level (EN 50125-1:2014, class AX) | x | x |
| Shock / Vibration | EN 61373:2010; Cat. 1; Class B | x | x |
| EMC Emission / Immunity | EN 50121-3-2:2016; EMV 06 (2.0) Class S1;EN 301 489-1 (V2.2.3) | x | |
| ECE R10 Rev.5 | x | ||
| Safety | EN 50155:2017; EN 50153:2014+A1:2017; EN 50124-1:2017; EN 62368-1:2016; EN ISO 13732-1:2008 | x | x |
| Fire & Smoke | EN 45545-2:2013 + A1:2015; HL3 | x | |
| ECE R118 | x | ||
| Useful Life | 20 years (EN 50155:2017, class L4) | x | x |
| Pollution Degree | PD2 (EN 50124-1:2017) | x | x |
| Certifications | CE | x | |
| UN ECE R10 (E-Mark) | x |
For further information on technical specification - especially for I/O modules - please refer to our Download Section
