Lyve Demo Kit
Introduction
This documentation is valid for CI4Rail Part number: S114-KIT01-00.
Purpose
The demo kit allows you to evaluate the performance and capabilities of LYVE components:
- Installation on cars, busses or trams
- Indoor positioning via UWB (Ultra Wideband)
- Outdoor positioning via GNSS (Global Navigation Satellite System)
- Dead Reckoning in areas with limited or no UWB/GNSS satellite visibility

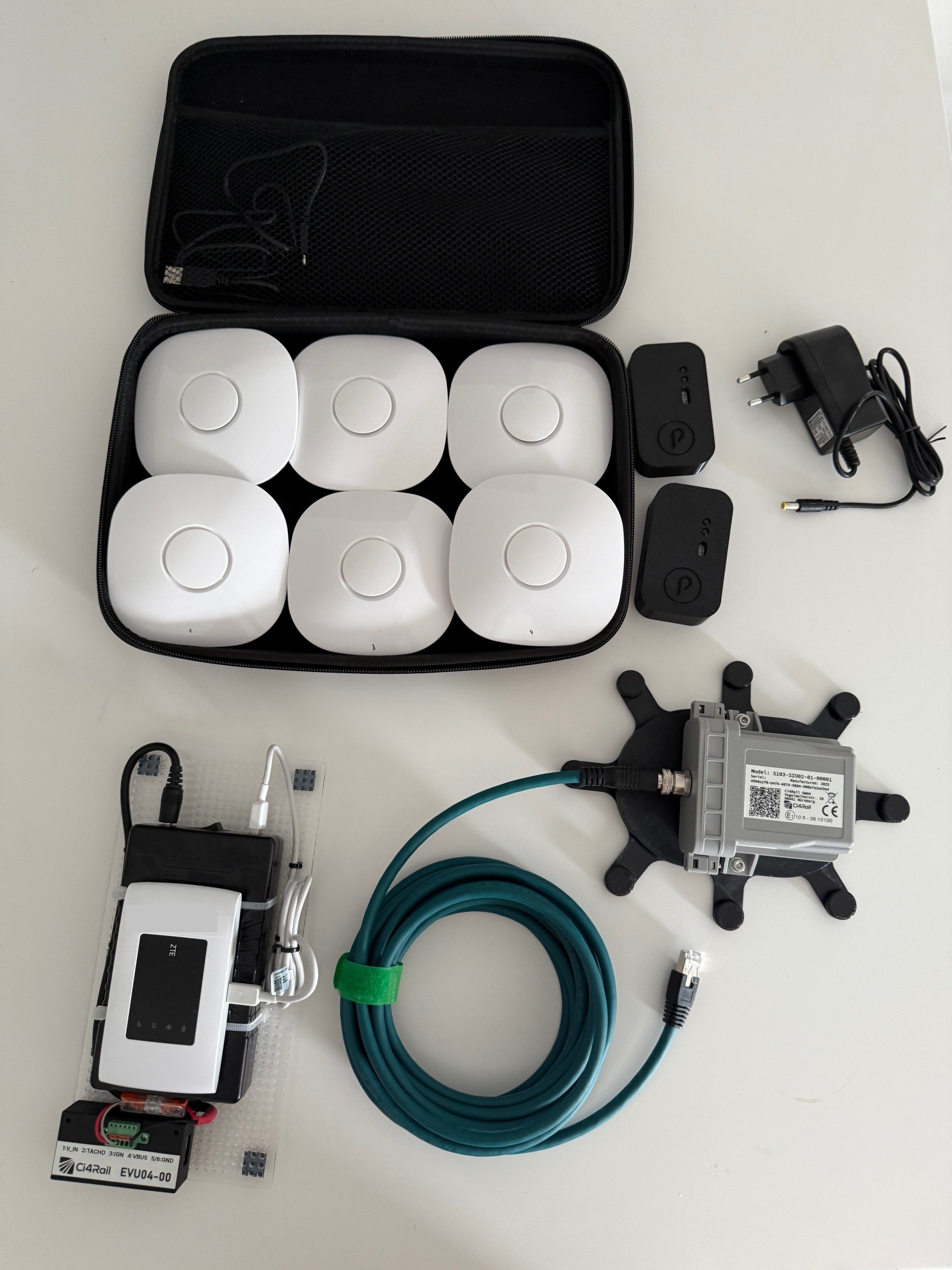

What is included in the demo kit?
The demo kit includes the following components:
- SIO02 Tracelet
- A base plate for the tracelet to ease installation on the vehicle, including magnets
- A base plate for the devices inside the vehicle
- Power bank to supply tracelet
- Breakout adapter EVU04 to get access to tracelet signals
- LTE/WLAN Router to provide internet connectivity and serve as a communication hub
- SIM Card for the Router
- Cable between from Tracelet to components inside the vehicle
- 6x UWB Satlets
- 1x UWB Checklet
- Necessary software components are available online for download
What you need
- A vehicle (car, bus or tram)
- Wheeltick signal should be available
- A PC with Windows 11 with
- the possibility to install programs
- Bluetooth low energy 4.0 or above
