IOU13 (Bitbus Slave Variant) - Bitbus Slave and Serial Interface

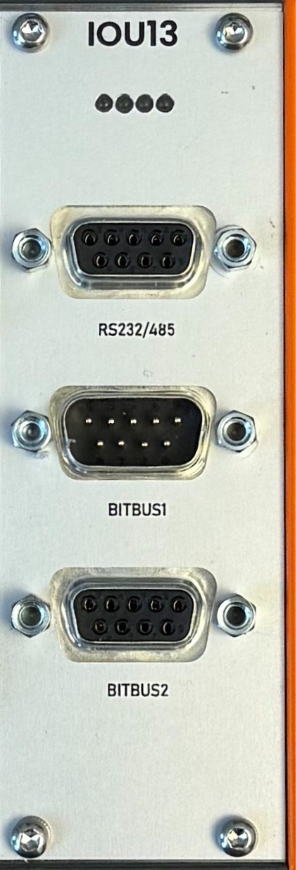

IOU13 (Bitbus Slave Variant) product view

IOU13 (Bitbus Slave Variant) is a ModuCop IO module that monitors Bitbus traffic, sends frames and acts as one Bitbus slave node. This documentation covers the transmit-capable hardware running the bbslave firmware.

In addition, it provides a serial interface for communication with other devices.

Start with the setup guide, then run the Bitbus slave loopback demo. The Bitbus demo requires no external Bitbus connection or master.

Features

  • 10/100MBit/s Ethernet Interface
  • Power Input 24...110V DC (nom) wide range
  • 1x Bitbus Interface via D-Sub connector
    • monitoring of Bitbus traffic
    • Filtering of specific addresses and lengths
    • sending of arbitrary Bitbus frames
    • acting as one Bitbus slave node
  • 1x serial interface with RS232 or RS485-full-duplex or RS485-half-duplex
    • Virtual tty support using RFC2217
    • Appears as a standard tty device on Linux hosts
  • Remote management capability
  • EN 50155 qualified

IOU13 (Bitbus Slave Variant) is an Io4Edge device, and therefore supports the features common to all Io4Edge devices.
