Hardware Interfaces
Power Input

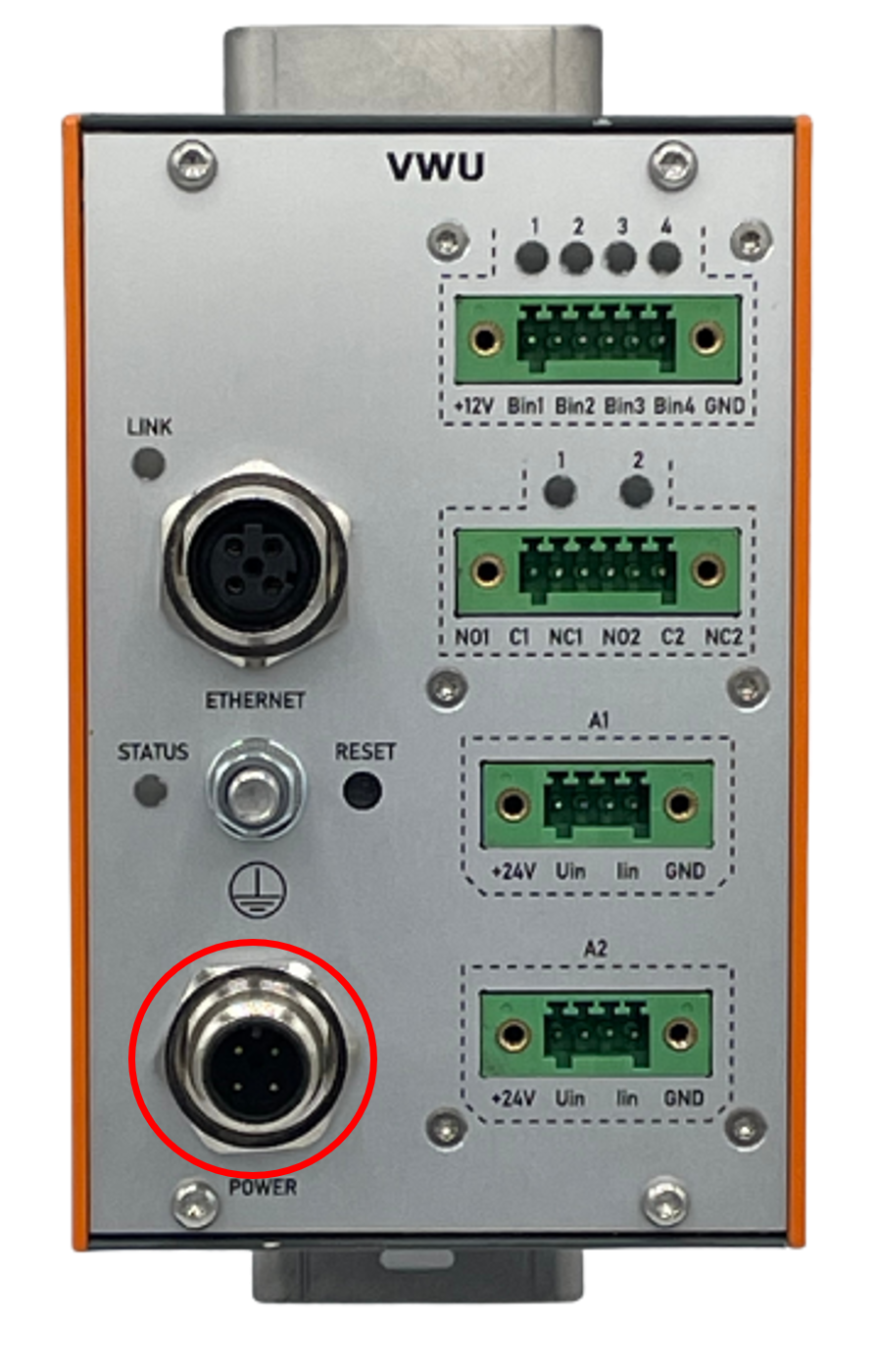

The SIO06 is supplied via an M12 4-pin A-coded (male) connector. The following picture shows the power supply connector location.

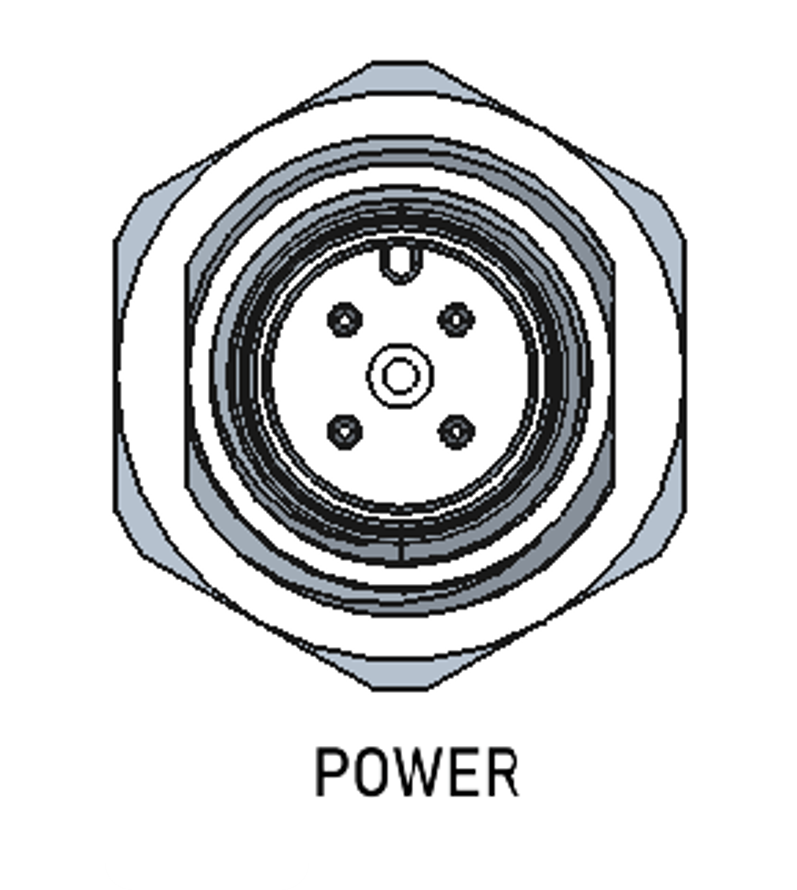

Pin assignment of the power supply connector:
| Pin | Signal Designator | Signal Description |
|---|---|---|
| 1 | Vin+ | Pos. supply voltage |
| 2 | N/C | Not connected |
| 3 | Vin- | Neg. supply voltage |
| 4 | Vin- | Neg. supply voltage |
Ethernet Interface

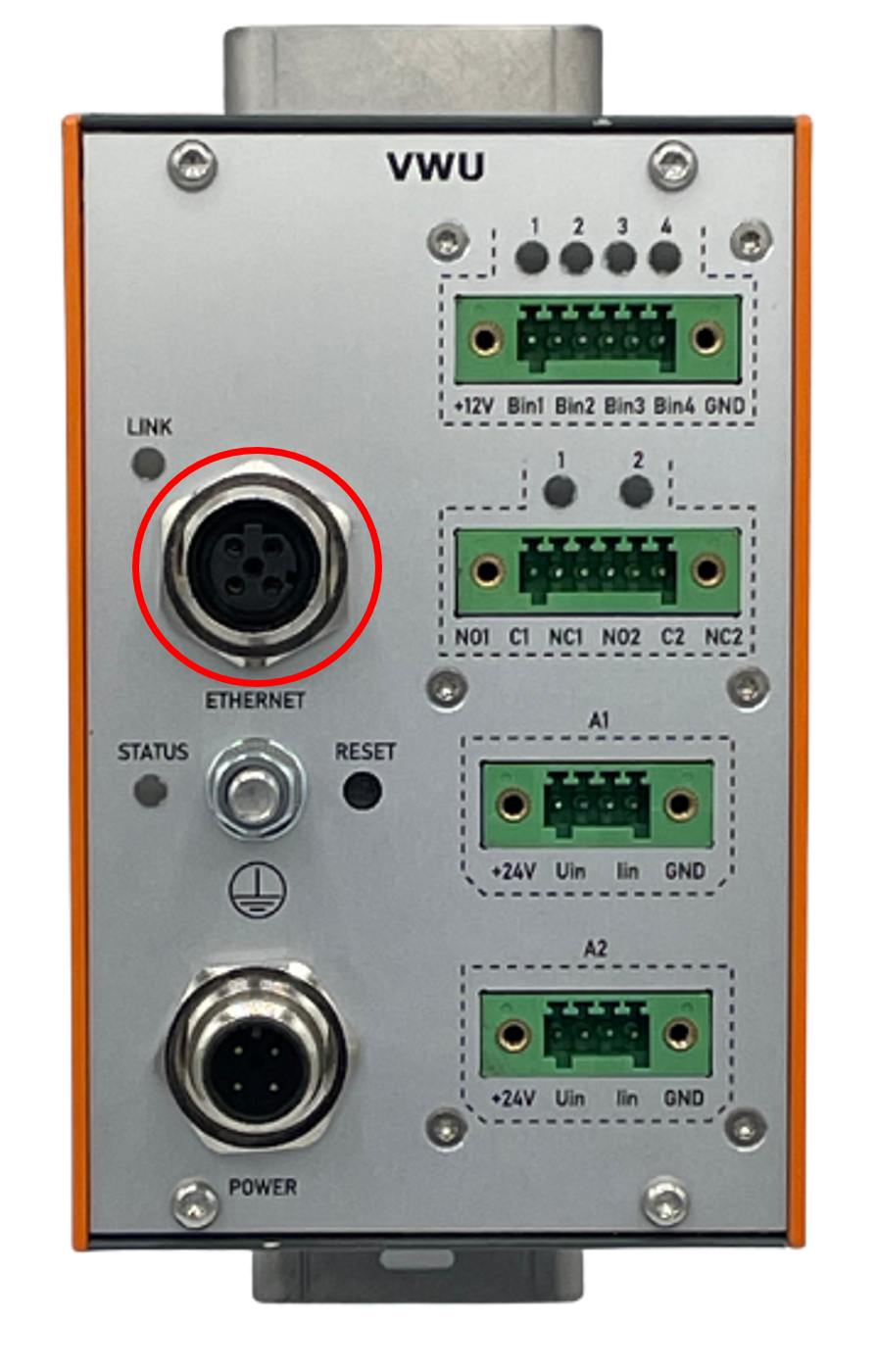

The SIO06 provides a 100 Mbit/s Ethernet interface via an M12 4-pin D-coded (female) connector.
Pin assignment of the Ethernet connector:
| Pin | Signal Designator | Signal Description |
|---|---|---|
| 1 | TD+ | Transmit (Diff +) |
| 2 | RD+ | Receive (Diff +) |
| 3 | TD- | Transmit (Diff -) |
| 4 | RD- | Receive (Diff -) |
Digital Inputs

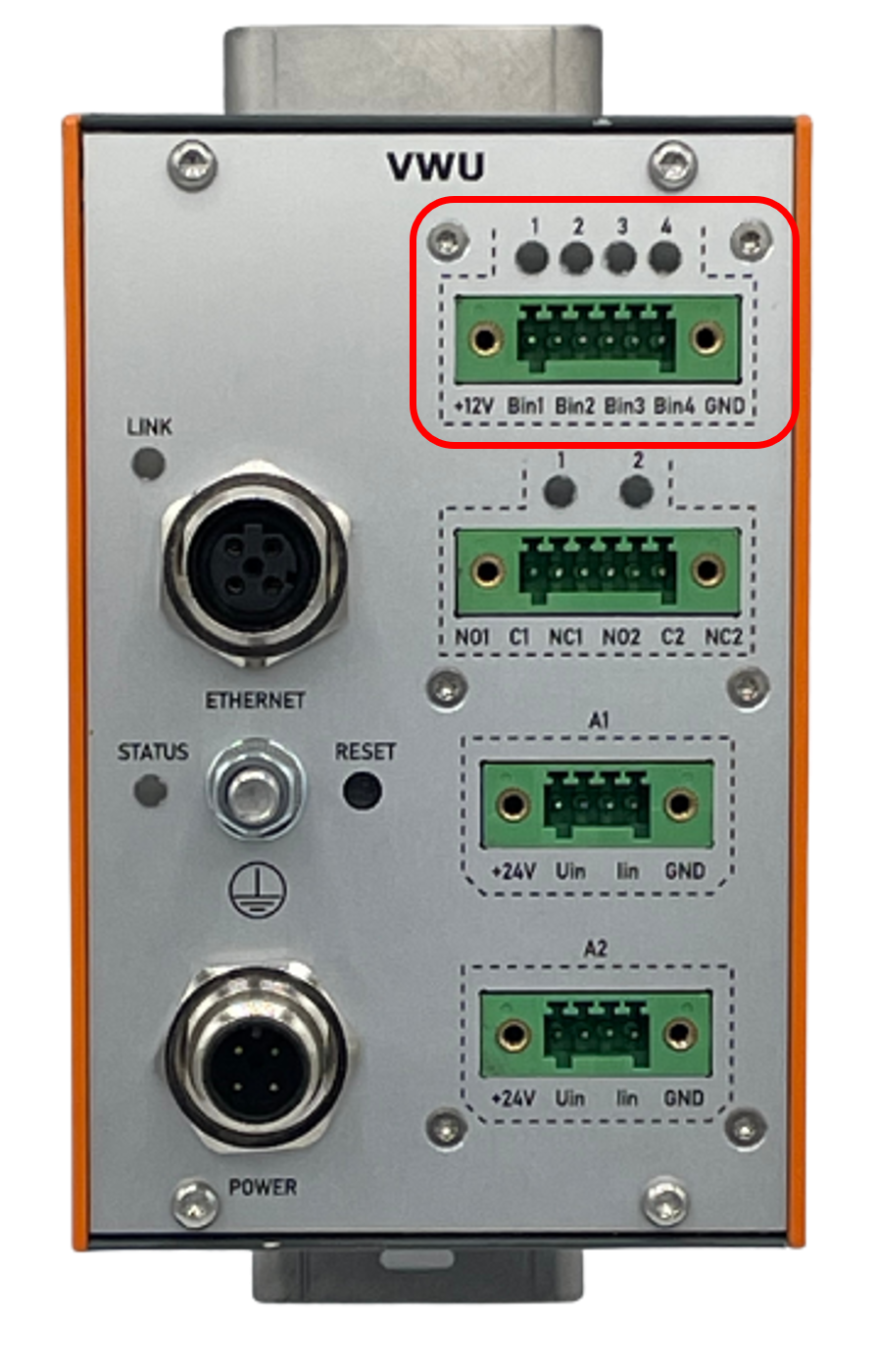

The SIO06 provides 4x digital inputs via a 6-pin spring terminal connector (0...12 VDC).

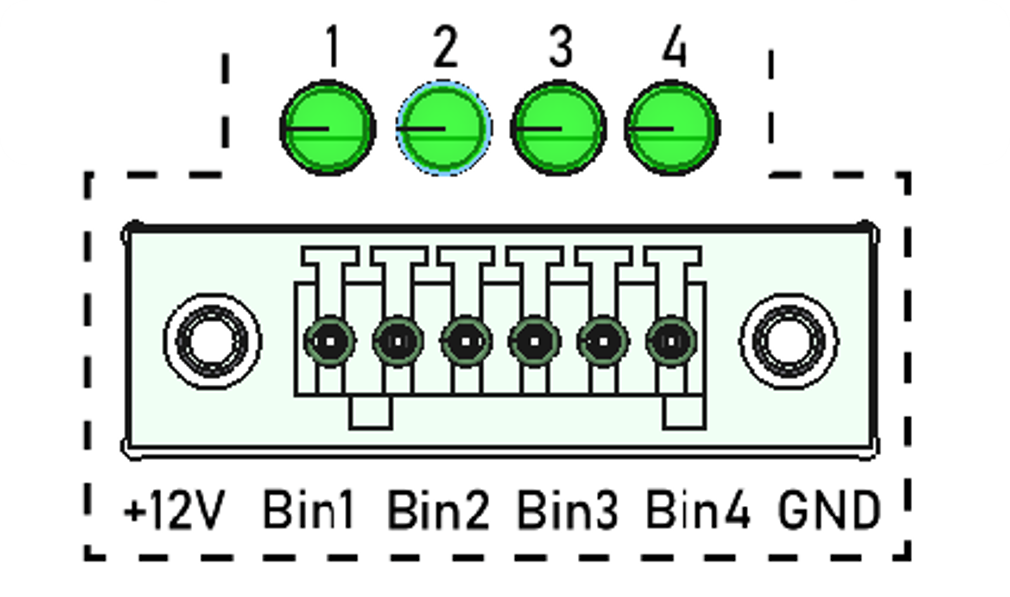

Pin assignment of the digital input connector:
| Pin | Signal Designator | Signal Description |
|---|---|---|
| 1 | +12V | 12V supply voltage output |
| 2 | In1 | Input 1 |
| 3 | In2 | Input 2 |
| 4 | In3 | Input 3 |
| 5 | In4 | Input 4 |
| 6 | GND | Common Ground (Digital input group) |
Relay Outputs
The SIO06 provides two potential-free SPDT relay outputs (changeover contacts) via a 6-pin spring terminal connector.
Pin assignment of the relay output connector:
| Pin | Signal Designator | Signal Description |
|---|---|---|
| 1 | NO1 | Normally Open Contact relay 1 |
| 2 | C1 | Common relay 1 |
| 3 | NC1 | Normally Closed Contact relay 1 |
| 4 | NO2 | Normally Open Contact relay 2 |
| 5 | C2 | Common relay 2 |
| 6 | NC2 | Normally Closed Contact relay 2 |
Mating Connector for Digital Inputs and Relay Outputs
A suitable mating connector for Digital Inputs and Relay Outputs is Wuerth Electronic P/N 691381030006.
Ci4Rail provides a customized version of this connector with an additional pin 1 marking. It is offered in packages of 25 under P/N S104-ACS21-00.
Analog Inputs

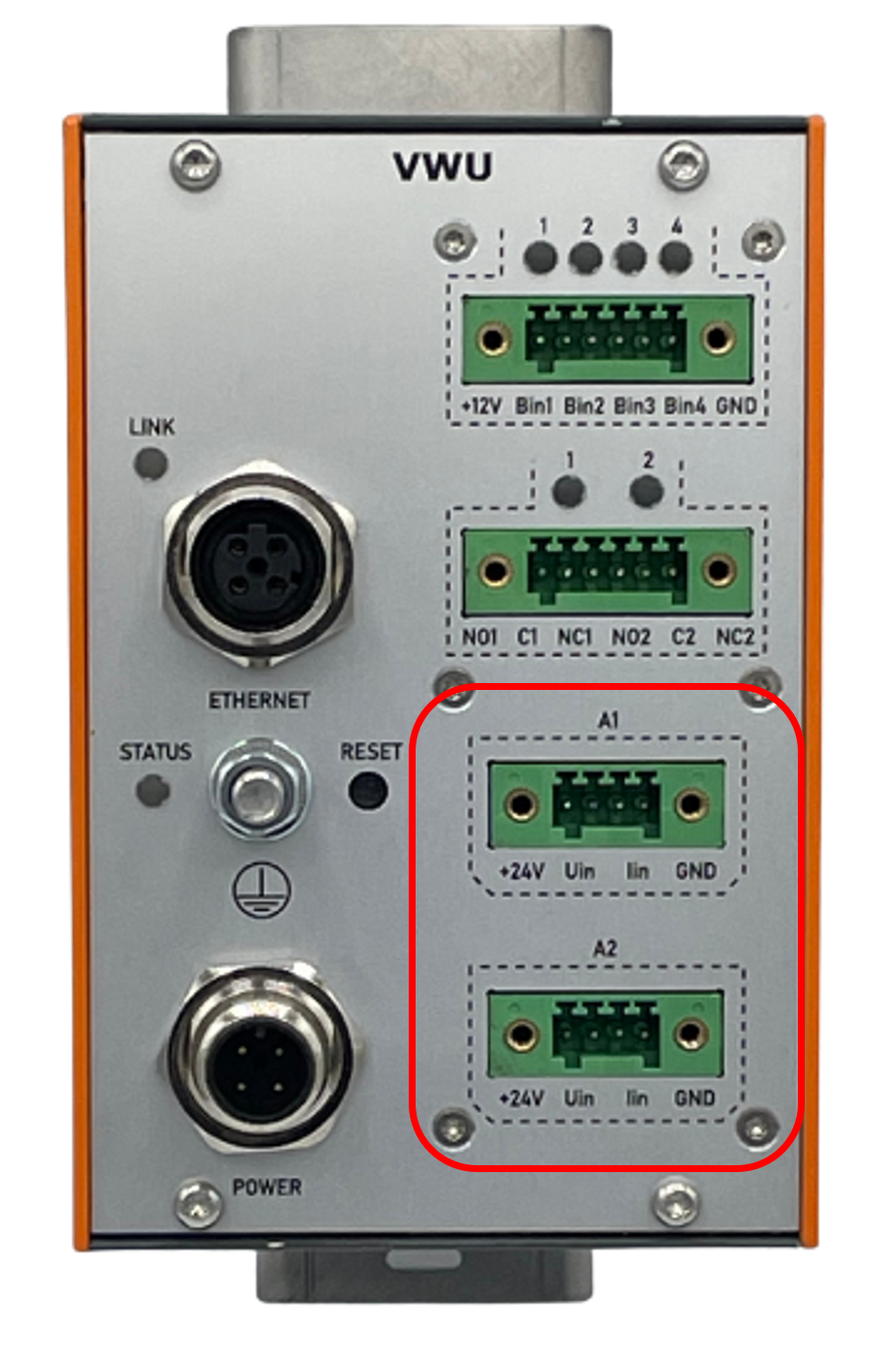

The SIO06 provides two analog inputs, each via a 4-pin spring terminal connector.

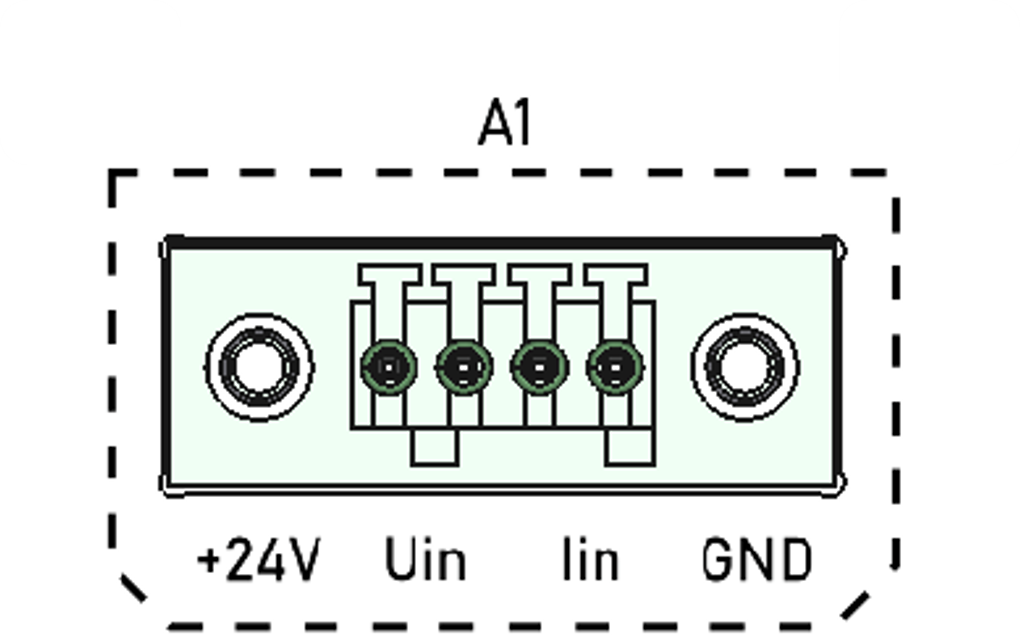

Pin assignment of the analog input connector:
| Pin | Signal Designator | Signal Description |
|---|---|---|
| 1 | +24V_x | +24V supply output, 24 mA |
| 2 | Uin x | Voltage input |
| 3 | Iin x | Current input |
| 4 | GND x | Common Ground (analog input group) |
A suitable mating connector for Analog Inputs is Wuerth Electronic P/N 691381030004.
Ci4Rail provides a customized version of this connector with an additional pin 1 marking. It is offered in packages of 25 under P/N S104-ACS20-00.
Service Interfaces
Reset Button
The SIO06 provides a front-accessible reset button:
Reset button functionality is described here.
Status LED
The SIO06 provides one multicolor status LED on the front:
Status LED functionality is described here.
Ethernet Status LED
The SIO06 provides one Ethernet LED on the front:
Ethernet status LED functionality:
| Color | Functionality |
|---|---|
| yellow | Link up, no activity |
| alternating between yellow and brighter yellow | Link up with activity |
Digital Input LEDs
The SIO06 provides one status LED per input on the front:
Digital input status LED functionality is described here.
Relay LEDs
The SIO06 provides one status LED per relay output on the front:
Relay output status LED functionality is described here.
